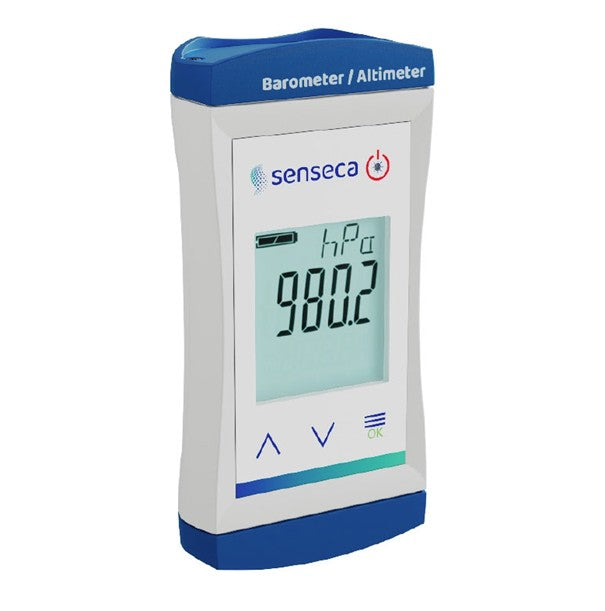

Greisinger Precision Barometer/ Altimeter

Greisinger Precision Barometer/ Altimeter

Replacement for GDT 1100 and GPB 3300

During the development of the new G 1100 series, the main focus was on the general functions of the measuring technology – a high-quality sensor is the heart of the measuring instrument – ​​despite the low price, no compromises were accepted on the sensor!

Precision, speed and reliability, packed in a compact, waterproof housing, make the device a reliable partner. Made in Germany.

But is the pressure shown correct?

Thanks to the traceability of the instruments via calibration certificates (ISO 17025, DAkkS), the barometer serves as a perfect reference instrument for checking the actual accuracy of corresponding devices.

• Features
• Specifications
• Datasheet

Features

Examples of uses

• Metrology
• Flight
• Motorsports
• Hiking
• Cycling

Barometric sensors are used in countless applications:

• Vehicles with internal combustion engines, air pressure is an important parameter for engine control
• Altimeter, calculating altitude using barometric altitude formula
• Navigation system
• Smartphones
• Weather stations

Specifications

Measuring ranges:	Barometer: 300.0 hPa to 1,100.0 hPa (mbar) abs. 4,350 PSI to 15,950 PSI abs. 225.0 mmHg to 825.0 mmHg (Dry) abs. Altimeter: -500.0 m to 9,000.0 m 640 feet to 19,999 feet temperature: -20.0°C to +50.0°C / -4.0°F to +122.0°F
Accuracy:	Barometer: Type: ±1 hPa typ. (at T: 0°C to +30°C) ±0.25% FSS max corresponds to ±2 hPa Altimeter: Type: ±1 m rel. (for short time with const. ambient pressure @ +25°C) Temperature: typ. ±0.5°C @ +25°C
Measurement frequency:	Fast: About 10 measurements/second SLO: Approximately 1 measurement/second
Overload:	4,000 hPa abs.
Pressure connection:	No connection, integrated sensor, pressure compensation via diaphragm
Show:	3-line segment LCD, backlight
Standard features:	*Min/max/hold *Automatic shut-off *Trend display *Time base selectable (1s, 60s, 1h, 3h) *Only as an altimeter: The covered altimeter calculates (ascent ASC, descent DESC, resolution 1 m)
Adjustment:	Zero point and Slope
Operating condition:	-20 °C to +50 °C, 0% to 95% RH (short-term dew possible)
Storage temperature:	-20 °C to +50 °C, 0% to 95% RH (short-term dew possible)
Power source:	2x AA battery, operating time approx. 6,000 h (SLO measurement mode), 4-stage charge status indicator, low charge level indication: "BAT LO"
Other:	*Break-proof ABS housing *Ingress protection IP67 *Dimensions L x W x H: 108 x 54 x 28 mm *Weight: 140 g incl. battery
